Branch Fittings
PRODUCT OVERVIEW
Industrial Grade Branch Fittings Manufactured to Global Standards

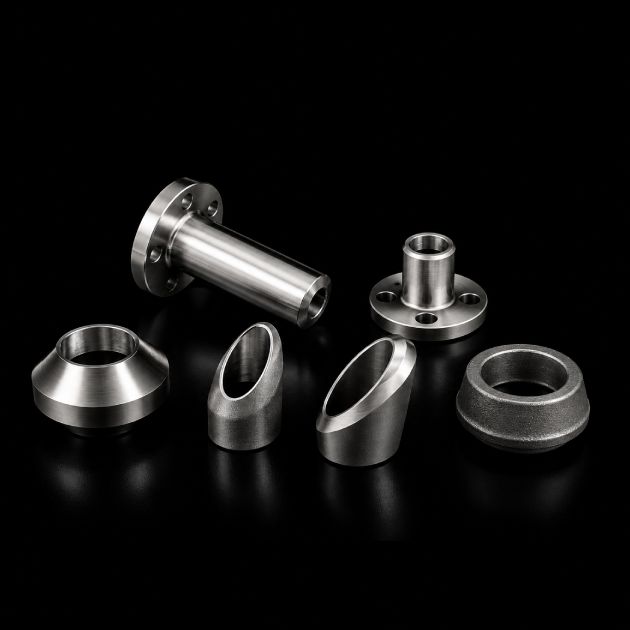

Branch fittings, also referred to as Olets, are used to connect a smaller branch pipe to a larger header pipe. They’re preferred over standard tees when the branch size is considerably smaller than the header, or where the pressure requirements call for reinforced connections. The joint produced is strong and resistant to leaks, and the fittings are built to handle high mechanical stress in demanding piping systems. Materials vary depending on the application: stainless steel, carbon steel, duplex steel, and high nickel alloys are all common. Manufacturing follows international standards including MSS SP-97 and ASME B16.11.
Types of Branch Fittings
Weldolet
Elbolet
Latrolet
Threadolet
Sockolet
Nipo Flange
Branch Fittings Specifications
Branch fittings are available in several pressure classes and end connection types to suit different piping layouts. The table below covers the general specifications for our range.
| Feature | Details |
| Standards | ASME B16.11, MSS SP-97, BS3799 |
| Size Range | 1/2″ to 24″ (or as per client requirements) |
| Pressure Ratings | 2000 LBS, 3000 LBS, 6000 LBS |
| End Connections | Butt Weld, Socket Weld, Threaded (NPT/BSP) |
| Class | SCH 10 to SCH XXS |
Materials Used to Make Branch Fittings
We work with high-grade materials to confirm these fittings can handle corrosion and elevated temperatures across different industrial environments.
| Material Category | Common Grades |
| Stainless Steel | ASTM A182 F304, F304L, F316, F316L, F321, F347 |
| Nickel Alloys | N02200 / N02201, N04400, N06600, N06625, N08020, N08120, N08800, N08810, N08811, N08825, N10276, N06617 |
| Duplex & Super Duplex | F51, F53, F55, S31803, S32750 |
Testing of Branch Fittings
We at Ritinox Industries carry out the following tests for our Branch fittings:
- Visual & Dimensional
- Heat Number Verification
- PMI (NDT)
- Chemical Analysis (DT)
- Ferrite Check (DT) - (If Applicable)
- End Preparations - (NDT)
- Heat Treatment Review
- Dye Penetrant - (NDT)
- Ultra Sonic Test - (NDT)
- Hardness Test - (DT)
- Corrosion Test - (DT)
- Impact Test - (DT)
- Tensile Test - (DT)
- Micro Structure Test
All NDT tests are Conducted / Reviewed by ASNT level Ⅱ / Ⅲ inspectors.
