Forged Fittings
PRODUCT OVERVIEW
High-Performance Forged Fittings Engineered for Critical Applications
Forged fittings are piping parts made through the forging process. To make them, a piece of steel is heated and then shaped using compressive force. This makes the fitting stronger than parts made by casting or machining because the metal’s internal grain structure is changed to follow the shape of the part. These are used in piping systems that deal with high pressure and high temperatures. They have good mechanical properties, such as high tensile strength and the ability to handle impact or fatigue without breaking. The materials used vary. You will see them in 304 or 316 stainless steel, carbon steel, or nickel alloys. Most of these components are made to meet international standards like ASME B16.11.
Types of Forged Fittings
Forged Fittings Specifications
This table shows the technical standards and pressure ratings for our forged fittings.
| Feature | Details |
| Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & Screwed (SCRD) – NPT, BSP, BSPT |

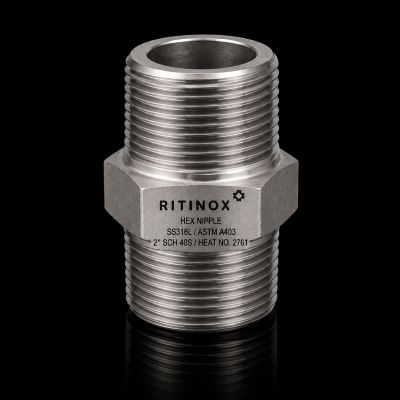

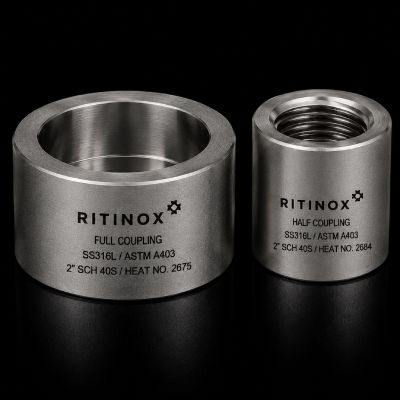

| Form | Elbow, Tee, Union, Cross, Coupling, Cap, Bushing, Plug, Pipe Nipple, Hoc Nipple, Welding Bars, Inserts |
| Size Range | 1/8″ NB to 4″ NB |
Materials Used to Make Forged Fittings
The material you choose depends on the liquid or gas in the pipe and the environment where the fitting is installed.
| Material Category | Common Grades |
| Stainless Steel | ASTM A182 F304, F304L, F316, F316L, F317L, F321, F347 |
| Duplex & Super Duplex SA/A182 | ASTM A182 F51 (S31803), F53 (32750), F55 (32760), F60 (32205) |
| Nickel Alloys SB / B564 | N02200 / N02201, N04400, N06600, N06625, N08020, N08120, N08800, N08810, N08811, N08825, N10276, N06617 |
Testing of Forged Fittings
- Visual & Dimensional
- Heat Number Verification
- PMI (NDT)
- Chemical Analysis (DT)
- Ferrite Check (DT) - (If Applicable)
- End Preparations - (NDT)
- Heat Treatment Review
- Dye Penetrant - (NDT)
- Ultra Sonic Test - (NDT)
- Hardness Test - (DT)
- Corrosion Test - (DT)
- Impact Test - (DT)
- Tensile Test - (DT)
- Micro Structure Test
All NDT tests are Conducted / Reviewed by ASNT level Ⅱ / Ⅲ inspectors.
